4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable

    Buy cheap 4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable from wholesalers

    Buy cheap 4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable from wholesalers
    • Buy cheap 4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable from wholesalers
    • Buy cheap 4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable from wholesalers
    • Buy cheap 4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable from wholesalers

    4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable

    Ask Lasest Price
    Brand Name : SLR
    Model Number : SL-C5-SFTP-OUT
    Certification : CE,ROHS
    Price : NEGOTIABLE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000ROLL per Day
    Delivery Time : 2week after payment( based on quantity)
    • Product Details
    • Company Profile

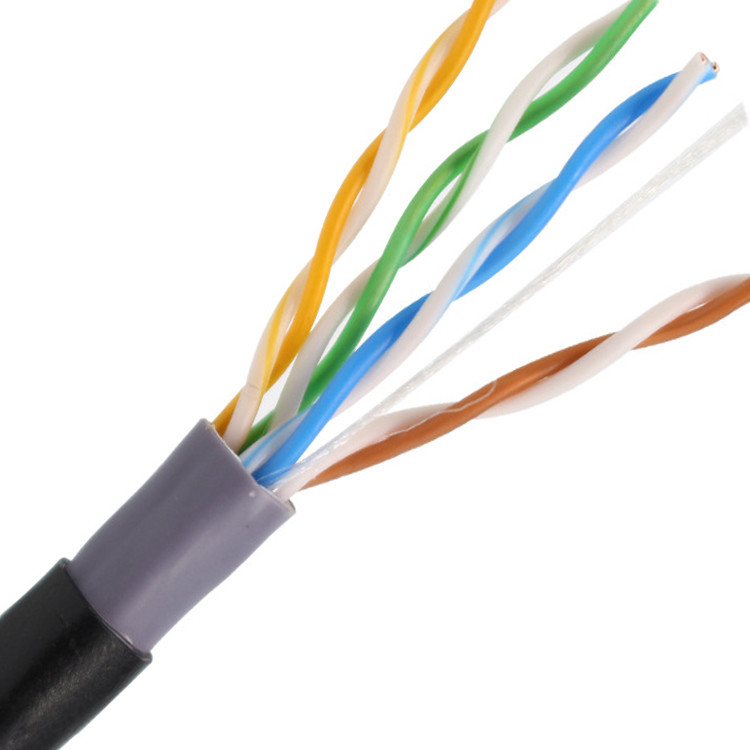

    4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable


    China Factory 4Pairs Outdoor Indoor Use UTP FTP SFTP Waterproof CAT5 Network Lan CAT5e 305m Wooden Drum Cable


    SFTP Shielded High performance data communications cable super good for use in voice, data, video and security application. SL Bulk Cable is ideal for your network installation for home, office and entire campus. SL Cable has the solution thats right for you. SL Outdoor SFTP shielded CM cable supports all CAT5e applications. This cable is designed for indoor installations.


    STRUCTURE:
    4 pairs of 24AWG solid bare Copper conductors
    HDPE Insulatioin
    4Pair Twisted
    Aluminum Foil Shielding

    Mesh brading
    Central X spline Separa
    PVC Jacket


    SL Cable's Outdoor is quality manufactured to meet and exceed product certifications and standards TIA/EIA -568-B.2. This cable is packed and shipped in 1000ft /305 meter on a wooden spool.


    4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable4Pairs Outdoor Indoor Wooden Drum Cable , UTP FTP SFTP CAT5 Network Cable


    APPLICATION
    • 10BASE-T, 100BASE-TX Fast Ethernet,
    1000BASE-T (IEEE802.3)
    • 100VG-AnyLAN (IEEE802.12)
    • 1000 MHz Broadband Video
    • Voice, T1, ISDN
    • 155/ 622 Mbps ATM
    • Power over Ethernet (POE)


    FEATURE
    1. High-performance data communications cable for noisy environment
    2. Suitable for 250MHz high speed data applications, Gigabit Ethernet, fast
    3. Ethernet and 155Mbps TP-PMD/CDDI
    Designed for indoor installations (CMR) riser
    Category-6 foil shielded twisted pair (FTP) cable
    4-Pair – easily identified color-striped pairs
    24AWG solid bare copper conductors
    Excellent attenuation and crosstalk characteristics
    Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
    ETL Listed
    Supplied in 1000 ft. wooden spool


    Frequency Range:1 - 100 MHz
    Max. DC Resistance :9.38 Ω/100m
    Max. Resistance Unbalance:5%
    Max. Mutual Capacitance:5.6 nF/100m at 1Khz
    Max. Capacitance Unbalance:330/100m at 1Khz
    Voltage Rating 300V Dielectric Strength:2.5 KV/2S
    Min. Insulation Resistance :5000 MΩ •KM
    Maximum Pulling Force100 N
    Minimum Bending Radius8* O.D.
    Max. Operating Temperature:‘+60 °C B109
    Min. Operating Temperature:’ -15 °C
    Max. Installation Temperature:‘+50 °C
    Min. Installation Temperature:0 °C

    Ordering Information


    Part numberDescription
    SL-SFTP-BC5-PE-BLSF/UTP - Foiled Unshielded Twisted Pair ,Category 5e, 4Pair, Solid ,305m Drum
    SL-SFTP-BC5-PVC-PE-BLSF/UTP - Foiled Unshielded Twisted Pair ,Category 5e, 4Pair, Solid ,305m Drum

    PS:
    1: 100M , 500M packing on Demand




    Q1: Is it possible to customize our brand information on the cable?
    A: Yes, we can print your brand name on the cable jacket and 3KM total cable length is requested.


    Q2: Can you pass FLUKE test?
    A: Yes, all SL networking cable can pass Fluke channel, component and permanent link test per customers' request.


    Q3: What is your MOQ of your products?
    A: We only have MOQ for some special jacket color, we request 3km as the total length of the bulk cable, you may consider stock
    the bulk cable with us for your urgent order production.


    Q4: Are free samples available from you?
    A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
    50 US dollars.


    Q5: Do you accept OEM and ODM orders?
    A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag
    and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even
    can open the new tooling for your specific project.


    Q6 : Are You Factory ?
    A 6: Yes, our cable factory have 13 years production experience.
