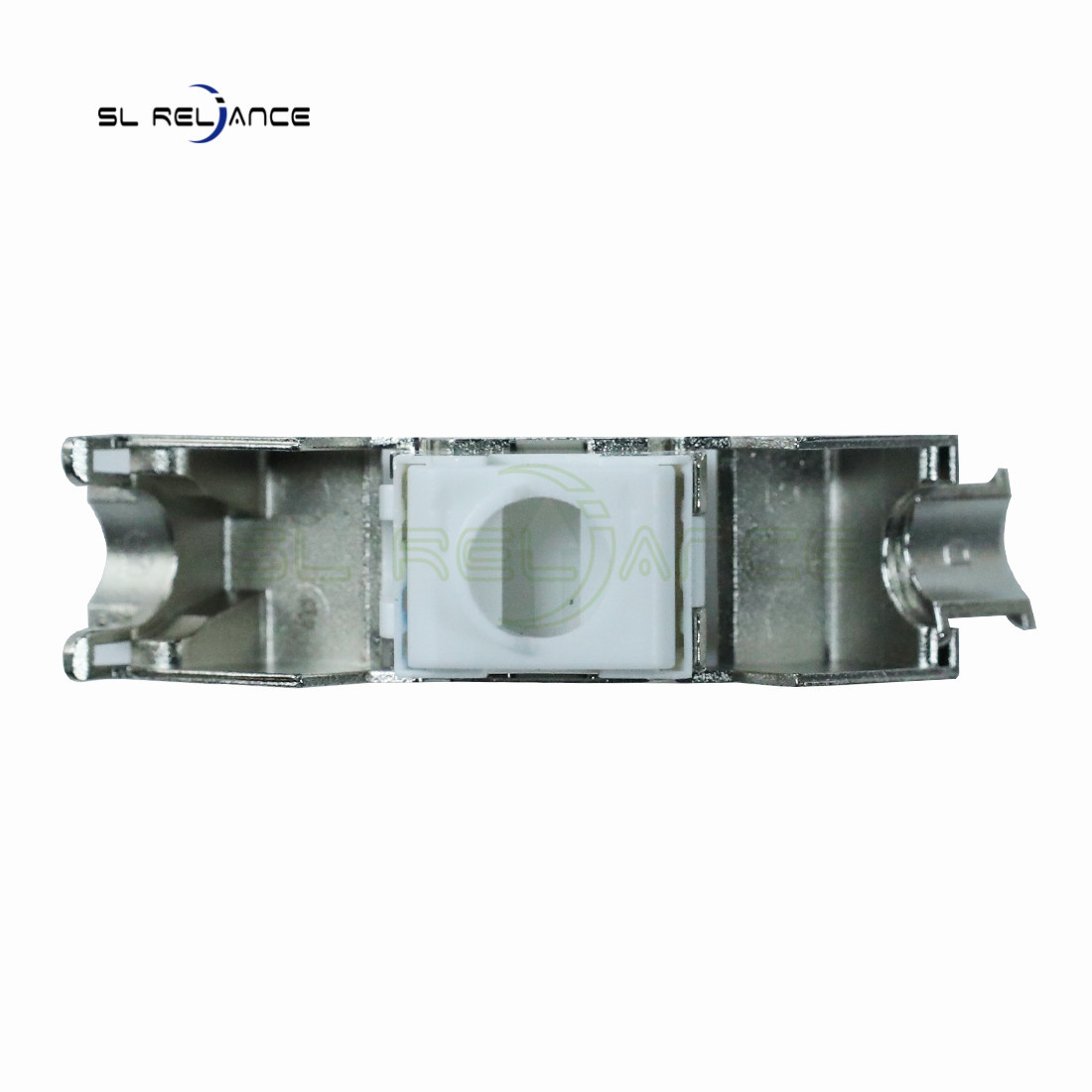

    Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-2070C6A
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

    Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack


    180 Degree Cat6A FTP Zinc Alloy Tooless Type Keystone Jack RJ45 8P8C Modular Jack


    Features:


    ~ SL Cat6a Keystone Jack Suitable for 10 Gigabit (10/100/1000/10000 Mb/s)

    ~ Compatible with 23 to 26 AWG solid or stranded copper conductors.
    ~ Supports PoE++ 802.3bt Type 4, up to 90W.
    ~ Press-Fit Technology makes SL product more reliable and increases transmission performance.
    ~ Tested up to 500 MHz.
    ~ Self-adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing.
    ~ Easy to Use
    ~ Self-terminating means no more punch down tools required.


    Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel


    Model NumberSL2070C6a
    NameINLINE COUPLER
    TYPEFTP shieled
    Category6a
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A&T568B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    Housing MaterialZINC-ALLOY,PC
    ColorSilver
    TestChannel test and Flukee test

    Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack


    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:Zinc-Alloy
    IDC Hosing:PC(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c TO 60°c
    Humidity:10-90%

    Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular JackZinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack
