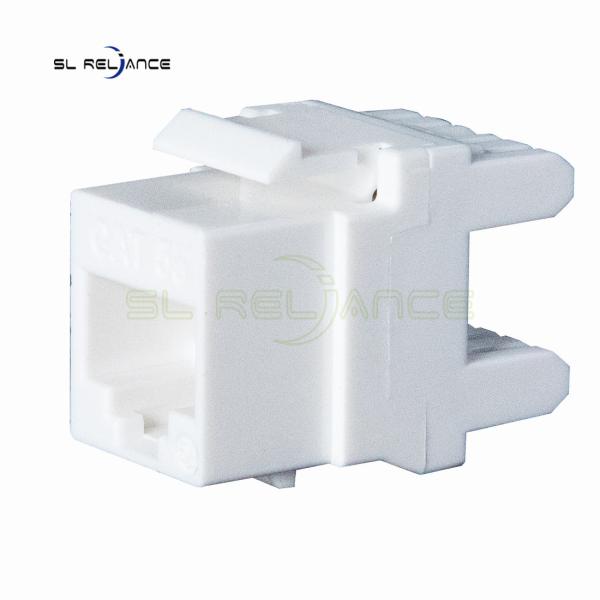

    White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-20105E
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

    White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack

    Category 5e RJ45 UTP 180 Degree Cat5e Copper Keystone Jack Black Color 8P8C Short Body Jack

    SL keystone Jack is designed to comply with the transmission performance of Category 5e .

    Transmission Performance:ANSI/TIA-568-C.2: meets or exceeds category 5e (1-100 MHz) component specifications

    Jack Type:8p8c (8-position, 8-contact) “RJ45” style
    Wiring Scheme:ANSI/TIA-568-C.2: T568A & T568B
    ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
    Characteristics:Housing: high-impact thermoplastic, UL94V-0 fire-retardant
    Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickel IDC: 110 type, phosphor bronze alloy with 100-μin 100% tin (Sn) alloy
    Storage: -40 °C - +70 °C (-40 °F - +158 °F) Operation: -10 °C - +60 °C (+14 °F - +140 °F)
    Media Type:Category 5E UTP

    Model NumberSL20105e
    NameKeystone Jack
    TYPEUTP unshieled Rotary
    Category5E
    MaterialABS +PC
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A/B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    ColorWHITE
    TestChannel test and Flukee test


    White 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone JackWhite 22~26 AWG Cat5e Keystone Coupler 8P8C Network Keystone Jack

    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
    IDC Hosing:PC(UL94V-0);PBT(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c-60°c
    Humidity:10-90%
