    CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-2085C6A
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

    CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

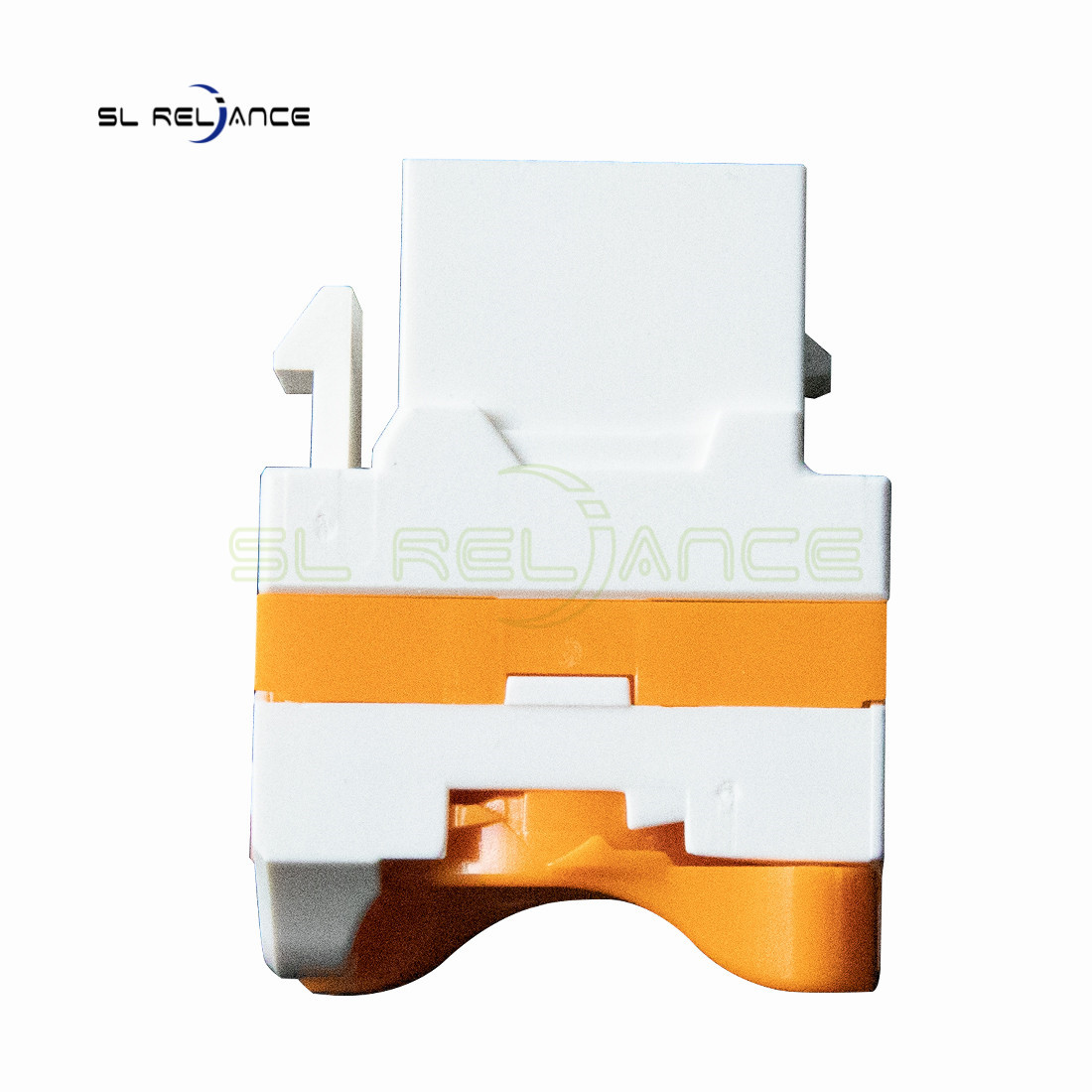

    180 Degree CAT6A UTP RJ45 Keystone Jack Rotate Short 8P8C UTP Jack Modular Connector

    SL keystone Jack is designed to comply with the transmission performance of Category 6A The Keystone Jack design is a popular, universal dimension that fits into a wide range of wall outlet and enclosure products.

    Material: ABS PC+ 50µ gold-plated pin
    Cable release and plug in: ≥750times
    Joint: ≥250times
    Color: White /Blue
    Product applicationCategory 6A 10G Base-T, 500MHz
    ISO/IEC 11801 3rd edition, EN 50173-1, PoE/PoE+ (IEEE 802.3af, 3at)
    RJ45 jack, 8P8C
    Tool-free
    Unshielded
    AWG-range: 26 … 22
    Material: ABS UL 94V-0
    Contact material: Phosphor bronze
    Contact coating: Nickel, gold-plated 0.5 µ
    Insertion force: Max. 30N
    Operating temperature range: -20 °C to +70 °C
    Mating cycles: ≥ 750
    White color for option

    Model NumberSL2085C6A
    NameKeystone Jack
    TYPEUTP unshieled Rotary
    Category6A
    MaterialABS +PC
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A/B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    ColorWHITE
    TestChannel test and Flukee test


    CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone ConnectorCE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone ConnectorCE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone ConnectorCE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector

    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
    IDC Hosing:PC(UL94V-0);PBT(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c-60°c
    Humidity:10-90%



    CE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone ConnectorCE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone ConnectorCE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone ConnectorCE ROHS UTP Cat6a Keystone Coupler Rotate Short Rj45 Keystone Connector
