    Rotary CAT6 UTP RJ45 Keystone Jack

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-2085C6
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

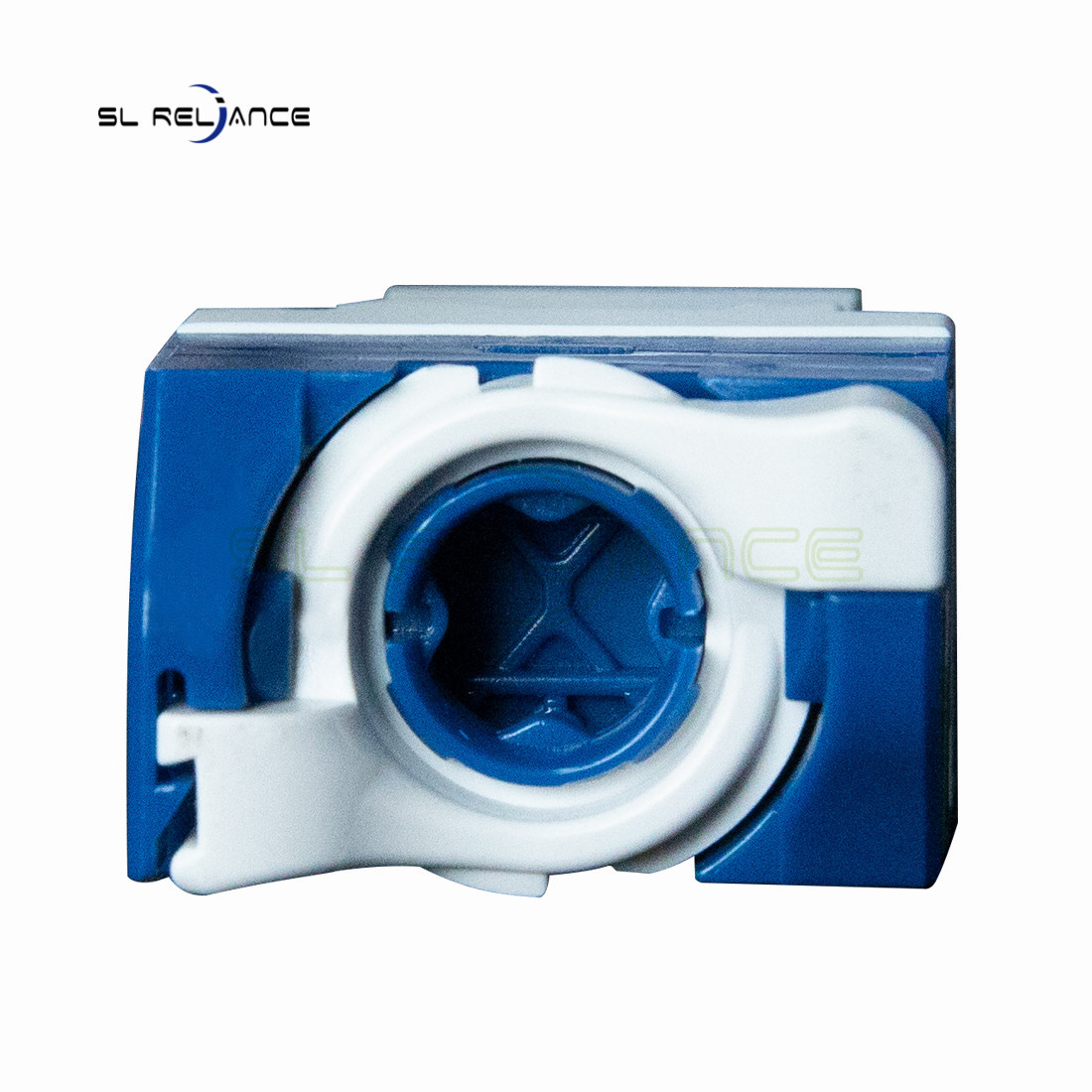

    Rotary CAT6 UTP RJ45 Keystone Jack


    Rotary CAT6 UTP Keystone Jack Rotate Tool Less Type Keystone Jack Modular RJ45 Connector

    SL keystone Jack is designed to comply with the transmission performance of Category 6 .This Rotary type Cat 6 unscreened RJ45 Keystone Jack is Compatible with any Product that accepts the Standard Keystone Profile. Compliant to T568A and T568B Wiring Schemes.

    Features:
    1: Small and high end form
    2: Professional design on PCB and JACk
    3: With High reliable performance

    Standards:
    1: ANSI/TIA-568-C.2
    2: ISO/IEC 11801
    3: YD/T 926.3-2009
    4:ISO/IEC 60603-7 Compliant
    5: RoHS Directive 2002/95/EC/Compliant

    Model NumberSL2085C6
    NameKeystone Jack
    TYPEUTP unshieled
    Category6
    MaterialABS +PC
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A/B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    ColorWHITE
    TestChannel test and Flukee test


    Rotary CAT6 UTP RJ45 Keystone JackRotary CAT6 UTP RJ45 Keystone JackRotary CAT6 UTP RJ45 Keystone JackRotary CAT6 UTP RJ45 Keystone JackRotary CAT6 UTP RJ45 Keystone JackRotary CAT6 UTP RJ45 Keystone Jack

    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
    IDC Hosing:PC(UL94V-0);PBT(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c-60°c
    Humidity:10-90%
