    8P8C RJ45 Cat6a Toolless Keystone Jack

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-2060C6a
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

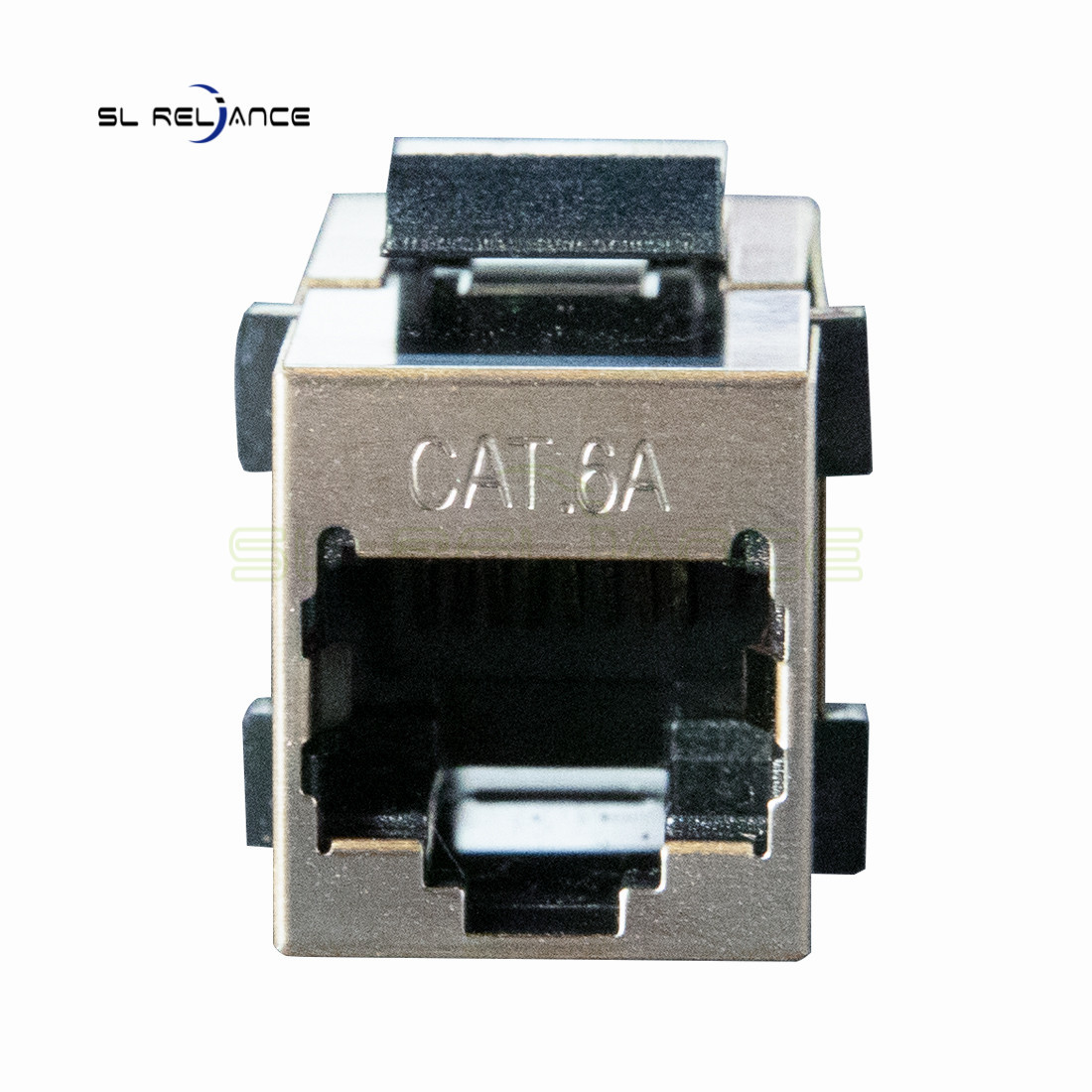

    8P8C RJ45 Cat6a Toolless Keystone Jack


    8P8C RJ45 Cat6A Inline Staright Through Coupler Cat 6a RJ45 Shielded Toolless Keystone Jack 180Degree


    SL Inline Coupler are the best chooice to extending the cables and linking several networking cable toghter. The SL Cat6a Couplers are most offen used togher with cat6a cable. The Coupler Jack keystone are compatiable with standards blank patch panels and wall plates. With Gold-Plated terminals to resist the corrosionn for years of usage, inline couplers provide female to female pass through connection.


    Features:


    1. Available in Cat6a, T568A/B wiring schemes, meet or exceed TIA/EIA Cat5e requirements
    2. Fits for 22/23/24AWG cables
    3. Housing: High temperature thermoplastic
    4. Compact jack design, 8 positions and 8 conductors
    5. Contact: Phosphor bronze, phosphor bronze with 6 to 50μ "gold plate
    6. Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
    7. Contact material: Phosphor bronze with golden plated 3, 6, 15, 30, 50U at optional

    Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel
    PCB material: FR-4 T=1.6mm
    IDC contact material: Phospor Bronze at thickness of 0.5mm and Nickel plating
    Housing Color = White or According to Customers' request
    Housing Material = ABS or PC


    Technique Characteristics:


    1. Material of plastic parts: PC 94V-0
    2. Material of the contact 8 pin: Phosphor bronze with golden plated 3U6U15U30U50U at option. Inserting duration: 750 times.
    3. Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.
    4. Standard 110 or Dual IDC
    5. Testing condition of transmitting capability: 100MHz


    Model NumberSL2060C6a
    NameINLINE COUPLER
    TYPEFTP shieled
    Category6a
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A&T568B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    Housing MaterialZINC-ALLOY,PC
    ColorSilver
    TestChannel test and Flukee test

    8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack


    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:Zinc-Alloy
    IDC Hosing:PC(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c TO 60°c
    Humidity:10-90%

    8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack8P8C RJ45 Cat6a Toolless Keystone Jack
