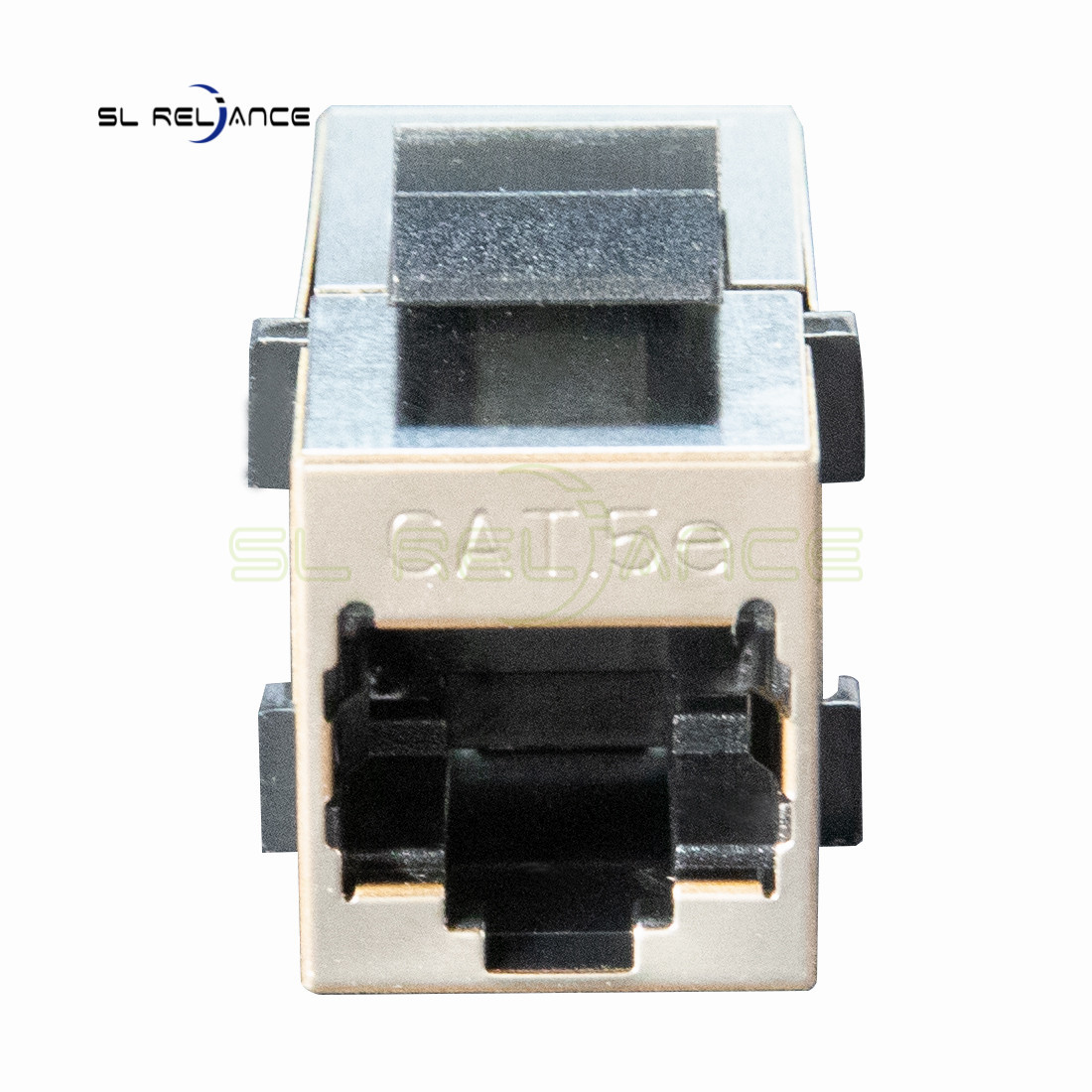

    180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-2060C5
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

    180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type


    180 Degree FTP Inline Coupler Type Cat5e Tooless Keystone Jack 8p8c RJ45 Inline Coupler


    SL Inline Coupler are the best chooice to extending the cables and linking several networking cable toghter. The SL Cat5e Couplers are most offen used togher with cat5e cable. The Coupler Jack keystone are compatiable with standards blank patch panels and wall plates. With Gold-Plated terminals to resist the corrosionn for years of usage, inline couplers provide female to female pass through connection.


    Features:

    CAT5e Shielded Keystone Jack Coupler

    Features:
    1:Straight type coupler for connecting two CAT5e cables together.
    2:Female-to female CAT6 RJ45 connectors.
    „3:Keystone plug-in
    „4:Fully shielded
    5:Compatible with modular patch panels.



    Model NumberSL2060C5E
    NameINLINE COUPLER
    TYPEFTP shieled
    Category5e
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A&T568B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    Housing MaterialZINC-ALLOY,PC
    ColorSilver
    TestChannel test and Flukee test

    180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type

    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:Zinc-Alloy
    IDC Hosing:PC(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c TO 60°c
    Humidity:10-90%

    180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type
