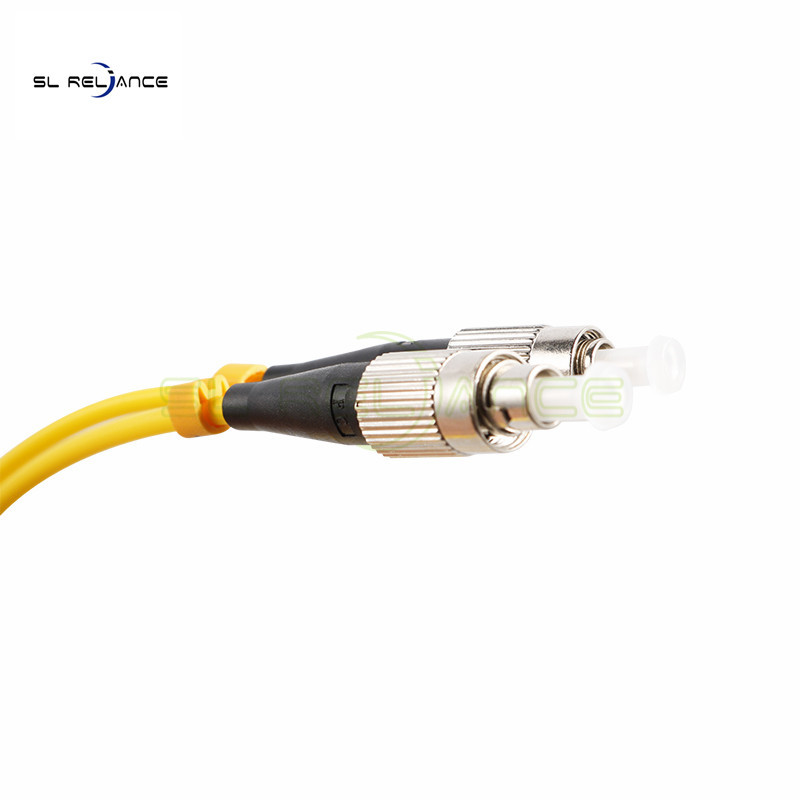

    FC UPC Single Mode Fiber Jumpers 3m Yellow Fiber Patch Cord for LAN CATV

    Ask Lasest Price
    Brand Name : SLR or OEM
    Model Number : FC Fiber Optic Patch Cord
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 3000PCS/DAY
    Delivery Time : 2Weeks after payment
    • Product Details
    • Company Profile

    FC UPC Single Mode Fiber Jumpers 3m Yellow Fiber Patch Cord for LAN CATV

    FC UPC Polish Singlemode Fiber Optical Jumper 3m Yellow Fiber Optical Patch Cord


    We are professional manufacturer of patchcord in China with more than 13 years.
    We can supply different connector yep fiber patch cord, such as ST, SC, FC, LC, MTRJ, SMA etc.


    Features:

    --- Good durability
    --- Good exchangeability
    --- High temperature stability
    --- Low insertion loss and back reflection loss
    --- Superior Quality Standard PC/UPC/APC Polishing
    --- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

    Application
    1: FTTH, LAN, PON & Optical CATV, Local ring net
    2: Optical fiber communication system
    3:Optical fiber test equipment
    4:Optical fiber sensor
    5: Industry and military application

    Specification:


    TypeStandard,Master
    StyleLC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
    Fiber

    Singlemode/Multimode
    50/125, 62.5/125 (Multimode) OM2&OM1
    50/125, 10G (Multimode) OM3

    Cable

    Simplex, Duplex
    Φ3.0mm, Φ2.0mm, Φ0.9mm
    PVC or LSZH

    Polishing MannerUPC,SPC,APC (8°& 6°)
    Insertion Loss

    ≤ 0.1dB (For Singlemode Master)
    ≤ 0.25dB (For Singlemode Standard)
    ≤ 0.25dB (For Multimode)
    Tested by JDS RM 3750

    Return Loss

    (Singlemode)

    UPC ≥ 50dB
    SPC ≥ 55dB
    APC ≥ 60dB (typ.65dB)
    Tested by JDS RM3750

    Repeatability±0.1dB
    Operating temperature-400C to 850C

    Geometry Requirement

    ( Singlemode)

    Ferrule Endface Radius
    7mm ≤ R ≤ 12mm (For APC)
    10mm ≤ R ≤ 25mm (For Standard)
    Apex Offset ≤ 30 μm (For Master)
    Apex Offset ≤ 50 μm (For Standard)
    Undercut -50nm ≤ U ≤ 50nm
    Tested by DORC ZX-1

    Ordering options

    1) Connector type: FC, SC, LC, ST
    2) Ferrule End-face: PC, UPC, APC
    3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    4) Cable Quantity: Simplex, Duplex
    5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
    6) Cable Length: 1, 2, 3 meter or customized
    7) Cable type: PVC, LSZH.
    FC UPC Single Mode Fiber Jumpers 3m Yellow Fiber Patch Cord for LAN CATVFC UPC Single Mode Fiber Jumpers 3m Yellow Fiber Patch Cord for LAN CATVFC UPC Single Mode Fiber Jumpers 3m Yellow Fiber Patch Cord for LAN CATVFC UPC Single Mode Fiber Jumpers 3m Yellow Fiber Patch Cord for LAN CATV
