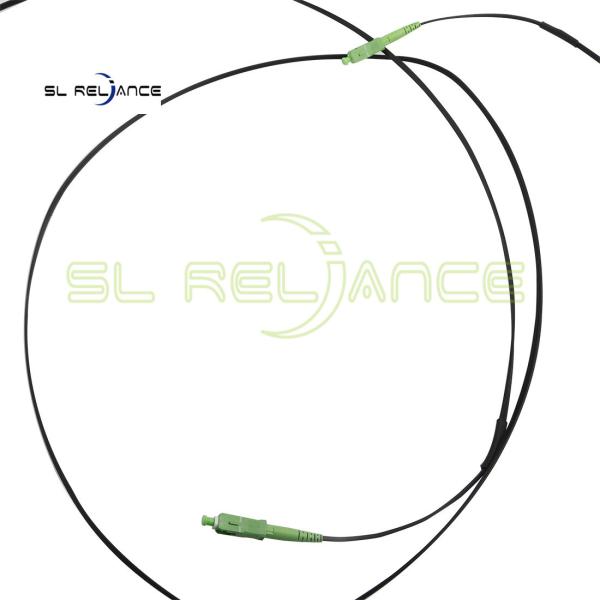

Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m

    Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers

    Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers
    • Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers
    • Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers
    • Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers
    • Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers
    • Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers
    • Buy cheap Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m from wholesalers

    Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m

    Ask Lasest Price
    Brand Name : SLR or OEM
    Model Number : FTTH Fiber Optic DROP Patch Cord
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 3000PCS/DAY
    Delivery Time : 2Weeks after payment
    • Product Details
    • Company Profile

    Outdoor Simplex G657A1 Fiber Optic Patch Cord Drop Cable SC/APC 3m~250m


    Drop Cable Fiber Optic Patch Cord SC / APC SM G657A1 Outdoor Simplex 3m ~ 250m


    A patch cord is a fiber optic cable used to attach one device to another for signal routing. SC type fiber patch cord: The connector that connects the GBIC optical module. Its outer casing is rectangular, and the fastening method is plug-and-pull type without rotating. (most used on router switches)


    Features:
    ---Good durability
    ---Good exchangeability
    ---High temperature stability
    ---Low insertion loss and back reflection loss
    ---Superior Quality Standard PC/UPC/APC Polishing
    ---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC


    Applications:
    CATV / VIDEO
    Passive Optical Network PON
    WDM / DWDM
    FTTH
    Data centres - Support high speed multi channel video, data and voice
    services in metropolitan and access networks
    ATM, SONET and WDM

    Specification:


    TypeStandard,Master
    StyleLC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
    Fiber

    Singlemode/Multimode
    50/125, 62.5/125 (Multimode) OM2&OM1
    50/125, 10G (Multimode) OM3

    Cable

    Simplex, Duplex
    Φ3.0mm, Φ2.0mm, Φ0.9mm
    PVC or LSZH

    Polishing MannerUPC,SPC,APC (8°& 6°)
    Insertion Loss

    ≤ 0.1dB (For Singlemode Master)
    ≤ 0.25dB (For Singlemode Standard)
    ≤ 0.25dB (For Multimode)
    Tested by JDS RM 3750

    Return Loss

    (Singlemode)

    UPC ≥ 50dB
    SPC ≥ 55dB
    APC ≥ 60dB (typ.65dB)
    Tested by JDS RM3750

    Repeatability±0.1dB
    Operating temperature-400C to 850C

    Geometry Requirement

    ( Singlemode)

    Ferrule Endface Radius
    7mm ≤ R ≤ 12mm (For APC)
    10mm ≤ R ≤ 25mm (For Standard)
    Apex Offset ≤ 30 μm (For Master)
    Apex Offset ≤ 50 μm (For Standard)
    Undercut -50nm ≤ U ≤ 50nm
    Tested by DORC ZX-1

    Ordering options

    1) Connector type: FC, SC, LC, ST
    2) Ferrule End-face: PC, UPC, APC
    3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    4) Cable Quantity: Simplex, Duplex
    5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
    6) Cable Length: 1, 2, 3 meter or customized
    7) Cable type: PVC, LSZH.


    TypeFiber CoreCable TypeCable ODCable MaterialCable ColorConnector (A End -B End)Patchcord Length
    PT=PatchcordS1=G652D01=simplex01=OD 0.9mm1=PVC(R)01=Blue 02=Orange01=SC 02=FC 03=ST005=0.5m
    PY=PigtailS2= G657A102=Duplex02=OD 2.0mm2=PVC(P)03=Green 04=Brown04=LC 05= E2000010=1.0m
    M1=50/12503=Armoured03=OD 3.0mm2=LSZH05=Slate 06=White06=SC/APC (Cone Type)020=2m
    M2=62.5/12504=DistributionXX=other07=Red 08=Black07= SC/APC (Step Type)025=2.5m
    M3=OM305=Ribbon09=Yellow 10=Violet08= FC/APC (Cone Type )XXX=other
    M4=OM406=breakout11=Rose 12=Aqua09= FC/APC (Step Type)
    XX=otherXX=other13=12Color XX=other10=LC/APC 11=E2000/APC
    12=MTRJ 13=MPO/PC
    14=MPO/APC 15=D4
    16=DIN 17=LX5 18=FDDI
    00=None XX=other
