    15M Female To Female 12 Fibers MPO MTP Patch Cord For Data Center

    Ask Lasest Price
    Brand Name : SLR
    Model Number : SLR-MPO-009
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 600000PCS/Month
    Delivery Time : 1 week after payment
    • Product Details
    • Company Profile

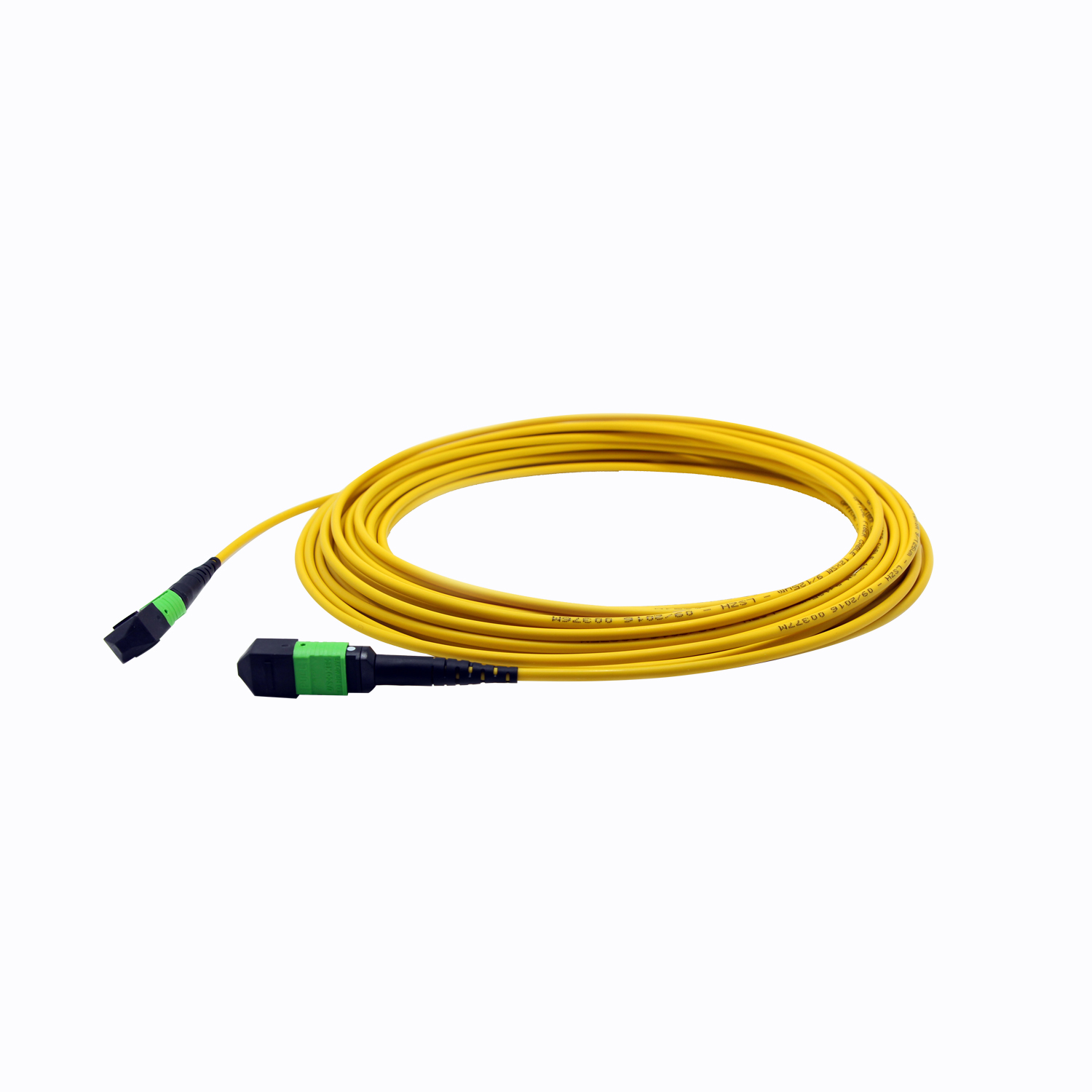

    15M Female To Female 12 Fibers MPO MTP Patch Cord For Data Center


    15M Female To Female 12 Fiber SM MTP / MPO Cables Trunk Cable Patch Cord For Data Center


    MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.
    · The data center application with high density environment
    · The optical fiber to the building
    · The internal connector application in fiber equipment such as Splitter,
    40G / 100G SFP and SFP .


    MPO/MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to in-stall between the trunk line, data centers and buildings. Our patch cord are 100% factory tested and can meet your special requirements. All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.


    Features:

    * MPO connector comply with stadards
    * A quick and easy to deploy
    * Lower Installaion cost and time
    *High network and systems proformance


    Applications:
    1.Computer Network Cabling Project.
    2.Broadband Network Communication.
    3.Digital ISDN Network and ATM 155Mbps Network
    4.EthernetNetwork
    5.Audio and Data Transmission


    Fiber Count8 - 48 Fiber
    Fiber TypeSM : OS2 9 / 125 um
    MM : OM3 / OM4 50/125 um
    Connector TypeMPO ,MTP, MTP Pro

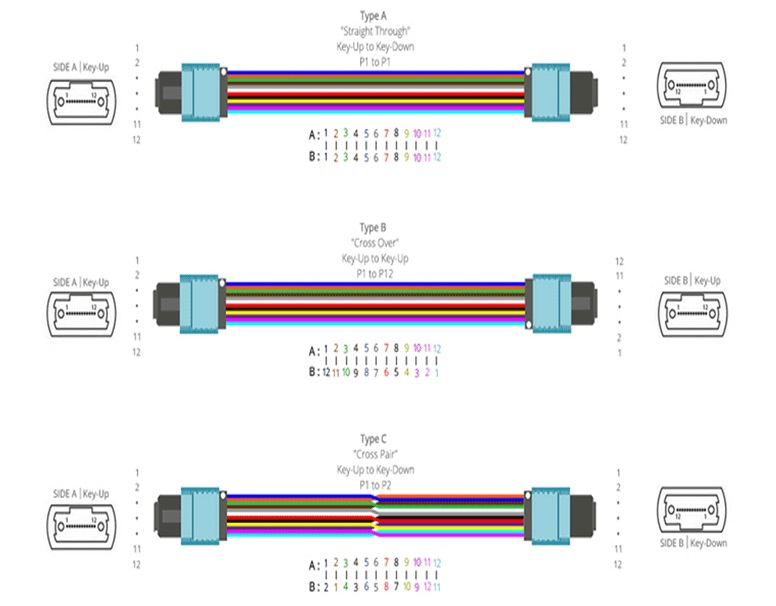

    PolarityType A, Type B, Type C
    Insertion LossSM: ≤0.75dB (Standards) ,≤0.35dB (Elite Low)
    MM:≤0.50dB (Standards) ,≤0.30dB (Elite Low)
    Return LossSM: UPC≥50dB,APC≥60dB
    MM: ≥20dB
    WavelengthSM:1310/1550nm MM:850/1300nm
    Transmition LengthOM4: 150m at 40/100G, 550m at 10G,
    OM3: 100m at 40/100G, 300m at 10G
    Working Temp.‘-40℃ to + 75
    Storage Temp.‘-40℃ to + 85
    StandardsROHS, CE
    Telecordia GR-1435-CORE
    IEC 61753-1
    IEC 61754-7
    IEC 61755-3-31/32
    TIA 605-4
    TIA 568.3 D
    YD/T1272.5
