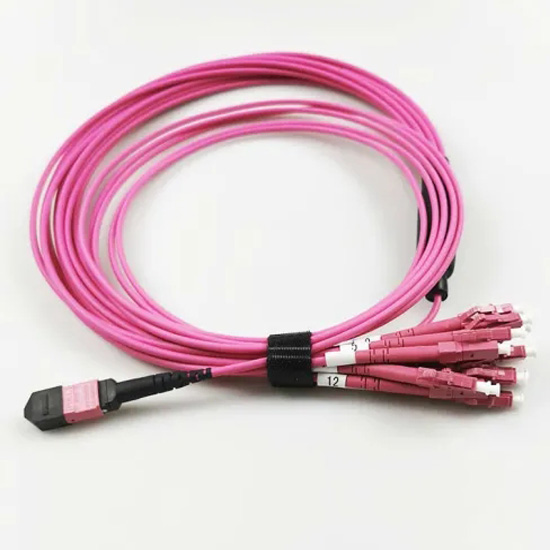

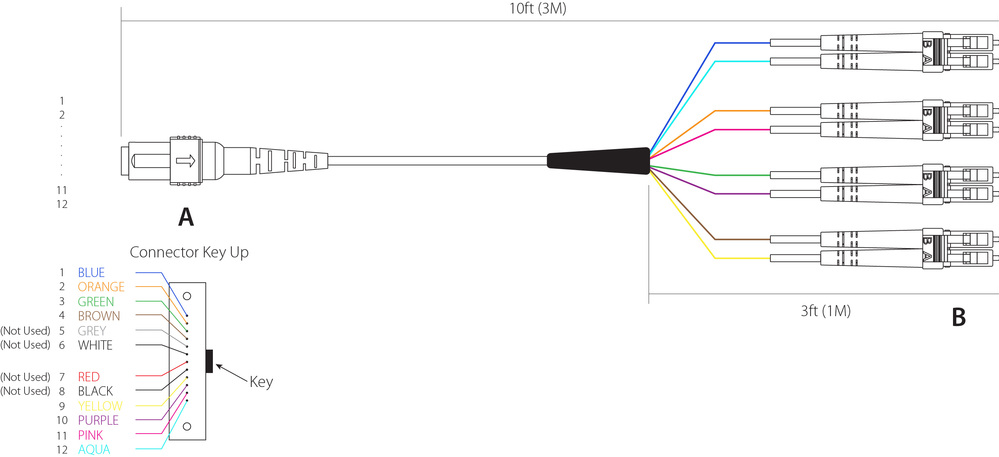

Fiber Optic 8 Core Mpo Cable OM4 MTP / MPO To LC Fanout Type 40G MPO - LC Cable

MTP-HD to LC-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminateing the need for finger access to the connectors release mechanism in dense applications. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

MTP 0.35dB IL, LC 0.3dB IL; 2.0mm Fan-Out Diameter & 0.5m Breakout Length; 3.0mm Cable Jacket, designed for 40G to 10G transmission rates in high-density data center

Performance:
a. Insertion Loss:
LC Type: < 0.50 dB
MTP Type: < 0.50 dB
b. Return Loss:
LC Type: ≥ 35 dB
MTP Type: ≥ 20 dB
c. Fiber overcut (MTP): 1.0~3.0um
d. Fiber Extention (LC): -0.05um < H < +0.05um
e. ø1.25mm Ferrule End-Face Radius: 7 < R < 25mm
ø1.25mm/LC Ferrule End-Face Radius: 5 < R < 12mm
f. Apex Offset: < 50um
g. Insertion Loss will be increaed after 500 mating: 0.2dB Max
h. Operating Temperature: -20 ℃to +70℃
i. Storage Temperature: -40 ℃to +80 ℃

Applications:

※ Data Center Interconnect
※ High-Density Cross Connect
※ Backbone Installations
※ elecommunication Networks
※ Broadband/CATV Networks
※ Test Labs
※ LAN/WAN Premises.

100% 3D test MPO MTP patch cord

We supply MTP and MPO fiber optic cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.

Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.

MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.

Optimized performance Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.

Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.

SL is one of the most advanced and capable factories to produce copper cable, fiber optic cable and telecom accessory. Beging at year 2008 , starting from network LAN cable, Gradually expending to 2012 year, adding the fiber optic production line, in Year 2015 we enter the production for fiber optic termination box and other telecom accessory.

We provides versatile end-to-end fiber optic and copper solutions.

Fiber solutions include fiber optic cables, fiber optic patch cord, fiber patch panel, fiber optic termination box， data center products, Cabinet , MPO/MTP, fiber optic accessories for indoor and outdoor applications.

The copper offerings comprises shielded and un-shielded LAN cables, Power Wires, Alarm Cables, CCTV wires, patch panel, keystone jack, patch cord and accessories.

As a result, our structured cabling products, server racks, and IT management accessories have already been implanted into the world-class data center and modern commercial buildings for decades.

SL have two factory, cable factory is located in Dongguan, Guangdong province , accessory factory is located in Hangzhou, Zhejiang.

Our factory have more than twenty production lines and three hundred employees. Our annual revenue is more than 8 million USD.Our company has obtain the certificate of ISO9001, CE and ROHS, etc.

For the past decades, SL have been continusly developing our production system and quality control standards,and creating professional engineering teams and service teams to meet customers demand.

Our products have been widely installed in projects of China Telecom, national defense, electricity, railway, highway, mining and oil fields. By exporting agent our products are widely used in more than seventy countries include EU, north America, south America, Africa, Middle East and Southeast Asia, East Europe, Australia, etc.

Our company has established a closely relationship with many Telecom companies. We sincerely look forward to establish long business relationship with all clients from all over the world and create a splendid future.

In our business, quality is everything. Professional team, powerful factory and strict quality control can give best service to every partner. Anywhere and anytime, we wait here to be your long partner!
