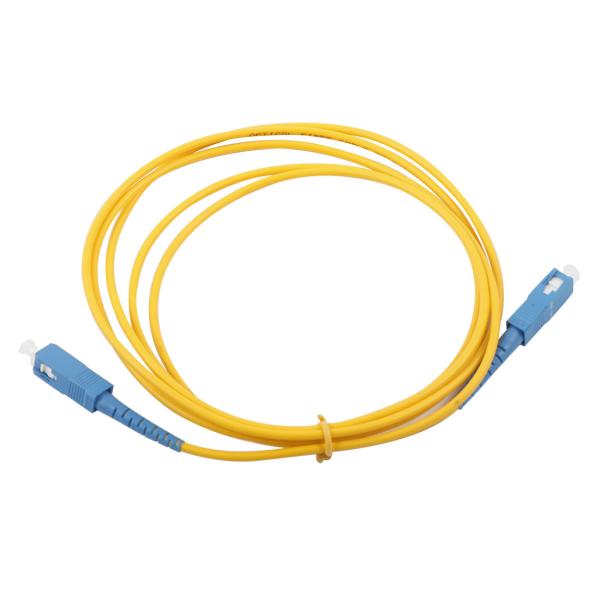

    SC UPC To SC UPC 9/125um Fiber Optic Patch Cord

    Ask Lasest Price
    Brand Name : SLR
    Model Number : SC/UPC -SC/UPC-SM-SX-3.0-3M
    Certification : CE,ROHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6000PCS/DAY
    Delivery Time : 1-2week after payment( based on quantity)
    • Product Details
    • Company Profile

    SC UPC To SC UPC 9/125um Fiber Optic Patch Cord

    The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,testing instruments,active device terminations,LAN/WAN and FTTX.


    Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC ,FC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

    Features

    ---Good durability
    ---Good exchangeability
    ---High temperature stability
    ---Low insertion loss and back reflection loss
    ---Superior Quality Standard PC/UPC/APC Polishing
    ---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

    Applications

    ---Telecom Net
    ---Local Ring Net
    ---Optical Fiber Sensor
    ---Optical Fiber Test Equipment
    ---Optical Fiber Communication System
    ---FTTH,LAN,PON & Optical CATV.


    Specification


    TypeStandard,Master
    StyleLC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
    Fiber

    Singlemode/Multimode

    50/125, 62.5/125 (Multimode) OM2&OM1

    50/125, 10G (Multimode) OM3

    Cable

    Simplex, Duplex

    Φ3.0mm, Φ2.0mm, Φ0.9mm

    PVC or LSZH

    Polishing MannerUPC,SPC,APC (8°& 6°)
    Insertion Loss

    ≤ 0.1dB (For Singlemode Master)

    ≤ 0.25dB (For Singlemode Standard)

    ≤ 0.25dB (For Multimode)

    Tested by JDS RM 3750

    Return Loss

    (Singlemode)

    UPC ≥ 50dB

    SPC ≥ 55dB

    APC ≥ 60dB (typ.65dB)

    Tested by JDS RM3750

    Repeatability±0.1dB
    Operating temperature-400C to 850C

    Geometry Requirement

    ( Singlemode)

    Ferrule Endface Radius

    7mm ≤ R ≤ 12mm (For APC)

    10mm ≤ R ≤ 25mm (For Standard)

    Apex Offset ≤ 30 μm (For Master)

    Apex Offset ≤ 50 μm (For Standard)

    Undercut -50nm ≤ U ≤ 50nm

    Tested by DORC ZX-1


    Product list

    BootConnectorFiber TypeCable numberFerruleConnector

    0.9mm

    2.0mm

    3.0mm

    LC

    FC

    SC

    ST

    MU

    D4

    MTRJ

    MPO

    DIN


    9/125um SM

    50/125um MM

    62.5/125um MM

    OM3

    OM4

    Simplex

    Duplex

    Multi-fiber

    Ribbon

    PC

    APC

    UPC

    1M

    2M

    3M4M

    5M

    .........

    Customized
