    Waterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall Mounting

    Ask Lasest Price
    Brand Name : SLR
    Model Number : SL-FOSC-J88B-24
    Certification : CE,ROHS
    Price : NEGOTIABLE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS/DAY
    Delivery Time : 1-2week after payment( based on quantity)
    • Product Details
    • Company Profile

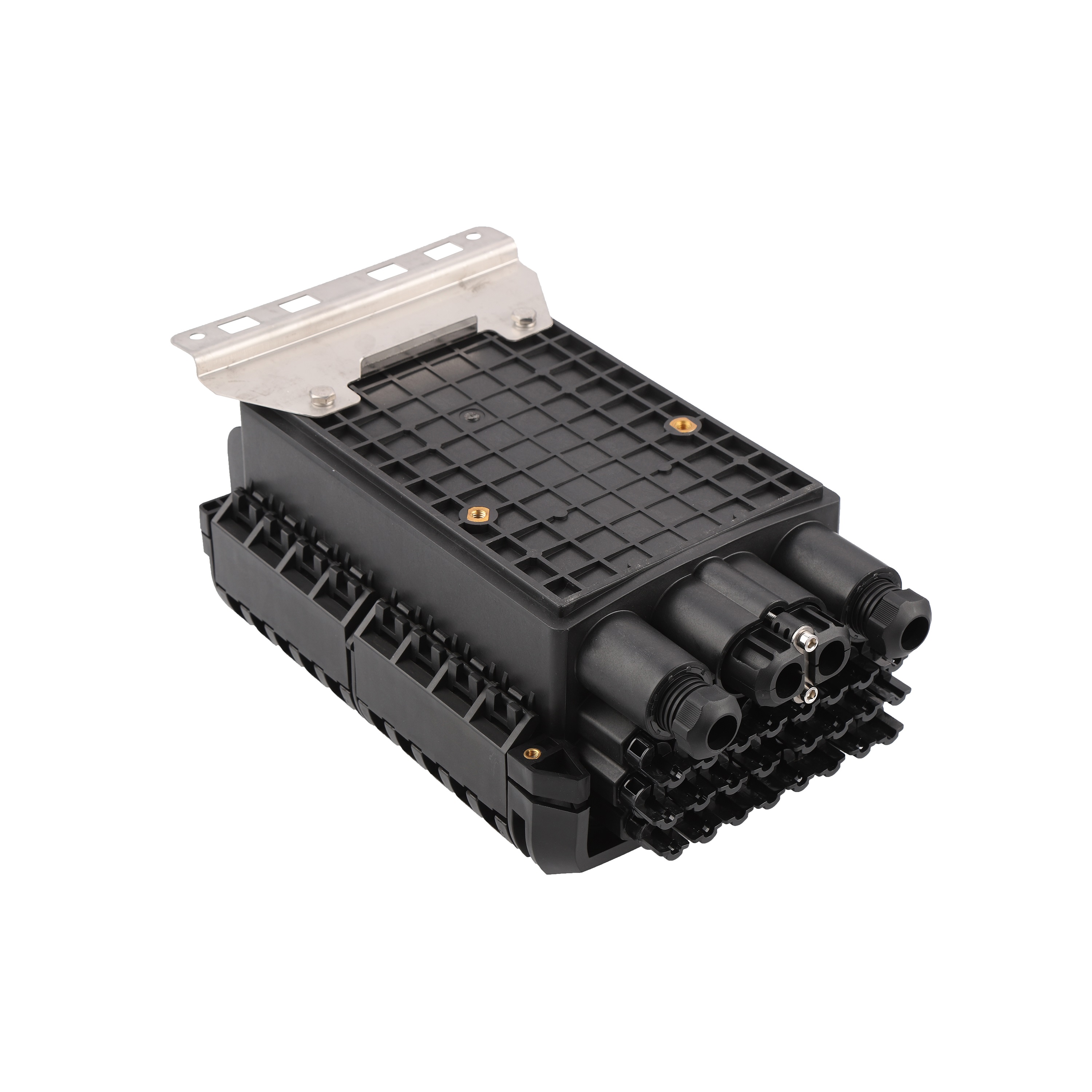

    Waterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall Mounting


    4 In 24 Out Fiber Drop Splice Closure Joint Box 24 Port Fiber Optic Acess Terminal Closure


    fiber access termination closure is able to hold up to 24 subscribers and 144 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

    Features:
    * Water-proof design with IP-68 Protection level.
    * Integrated with flap-up splice cassette and adaptor holder.
    * Impact test:IK10,Pull Force:100N,Full rugged design
    * All stainless metal plate and anti-rusting bolts, nuts.
    * Fiber bend radius control more than 40mm.
    * Suitable for the fusion splice or mechanical splice.
    * 2 pcs of 1*8 Splitter can be installed as an option.
    * Mechanical sealing structure and mid-span cable entry.
    * 24 ports cable entrance for drop cable .
    * 24 adaptors for drop cable patching



    Applications:
    * Wall mounting and pole mounting installation
    * FTTH pre-installation and filed installation
    * 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable



    Product NameIP68 Waterproof Junction Box / FOSC / Fiber Optic Distribution Cable Joint Box
    Model No.SL-FOSC-J88B-244
    Product Size (mm)385*245*135mm
    Fiber Count144
    Unit Weight KGS4.535kgs
    Qty per Carton PCS4 PCS
    Carton Size CM52 x 42 x 33 CM
    Gross Weight KGS19.2 KGS
    Volume CBM0.07 CBM

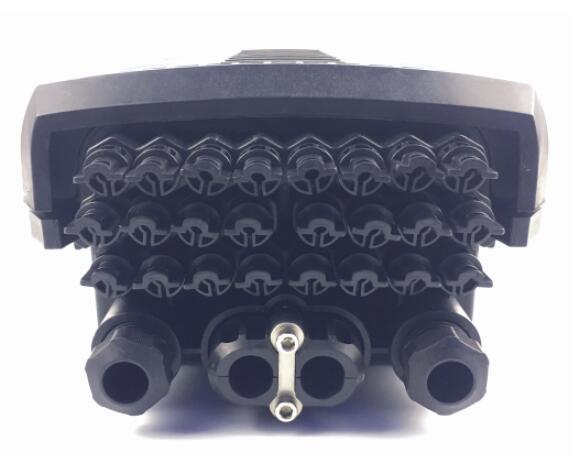

    CABLE Port1 input cable port for un-cut cable from diameter from10~17.5mm.
    2 output cable ports for cable diameter from 8~17.5mm.
    24 output cable ports for cable diameter less than 3~7mm.
    ColorBLACK
    Protection levelIP68
    Storage Temperature-40~65 (°C)
    Installation MethodWall-mounted, pole-mounting, manhole
    ApplicationFTTH FTTB FTTX Network
    WaterproofIP68

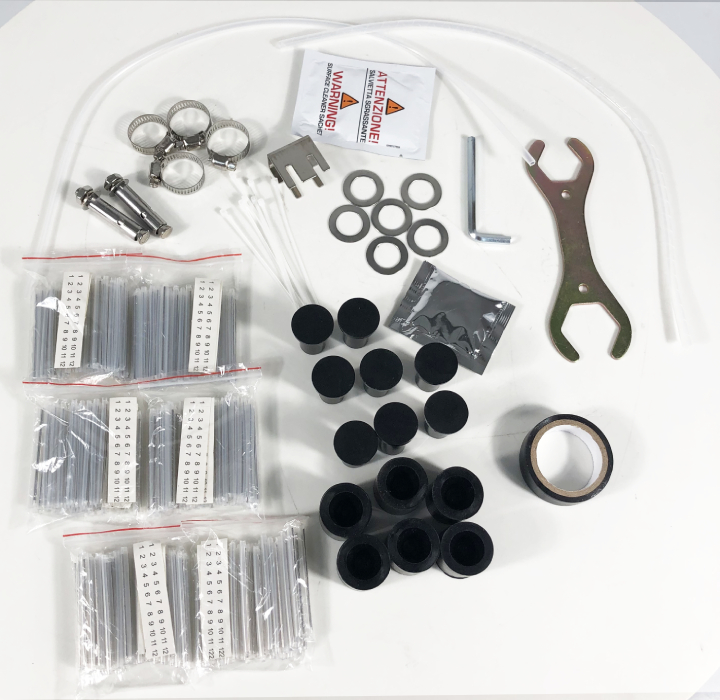

    Standard Accessories:
    Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, weach, cover holder, rubber seal for cable entrance.
    Optional Accessories: Pole ring


    Optional Accessories List
    1Steel Tape
    2Insulation Tape
    3Abrasive Cloth
    4Earthing Wires
    5Nylon Ties
    6Labeling paper
    7Heat Shrintable Protective Sleeve
    8Desiccant
    9Special Wrench
    10Hanging Hook
    11Wall Mounting Bracket
    12Buffer Tube for Bunchy Fiber


    Waterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall MountingWaterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall MountingWaterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall MountingWaterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall MountingWaterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall MountingWaterproofing 4 In 24 Out Fosc Fiber Optic Splice Closure 24 Port Wall Mounting


    Q : Why Choose us be one of your partner?
    A : 1 ) Quality Assurance
    2 ) Quick Response
    3 ) Free Sample Available
    4 ) Win-Win Price offer


    Q : Is OEM accepted?
    A : 1 ) LOGO print On Cable jacket is ok
    2 ) Order above 500Roll, also can do your brand box free of charge.


    Q : What is the method of Shippment?
    A : 1 ) By Sea, FCL full container / LCL cargo is ok
    2 ) By Air, Any of the International Express, such as DHL/Fedex etc.
    3 ) By Railyway or Road Truck


    Q : Can i get sample?
    A : Sample is available upon request.


    Q : What is the Payment Terms?
    A : TT,Western Union, Paypal. 30% Deposite to Confirm Order , 70% Balance Paid Before Shippment.
