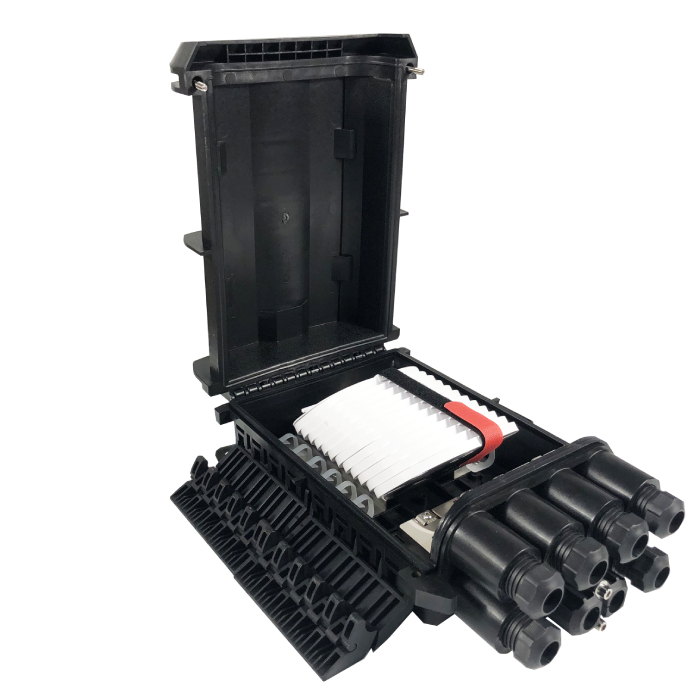

288 Core 8 Port Horizontal NAP FOSC Fiber Optic Splice Closure IP 68 FTTH Equipment

FTTH Drop Cable Type Fiber Optic Splice Closure is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

FTTH Drop Cable Type Fiber Optic Splice Closure features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures. Humanized design helps the user get a better experience and safer operating environments.

Impact Test: IK10
Pull Force:100N
Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (); IR≥2MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V ()/min, no puncture, no flashover; U≥3000V

Standard Accessories:
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, weach, cover holder, rubber seal for cable entrance.
Optional Accessories: Pole ring

Applications:
Ø Wall mounting and pole mounting installation
Ø FTTH pre-installation and filed installation

Features:
1). Can be used in straight-through and branch application for cables of bunchy fiber and ribbon fiber.
2). Engineering plastic body filled with silicon rubber and sealed with hoop, the entry ports are sealed with mechanical screw thread.
3). Suitable for aerial duct wall -mounted or buried applications.
4). Quick open clamped dome-base design, no special tools are needed to open the closure; it can be opened repeatedly, without changing sealing material.
5). Mechanical seal and convenient to reopen.
6). Slide and lock fiber optic splice tray with its opening angel above 90 degree, trays can be increased and reduced according to the application.
