GYTA G652D Gel Filled Direct Buried Fiber Optic Cable Aluminum Tape Armored

Ask Lasest Price
Brand Name :	SLR
Model Number :	GYTA
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	300000KM / Day
Delivery Time :	2 Weeks after payment

Add to Cart

Product Details
Company Profile

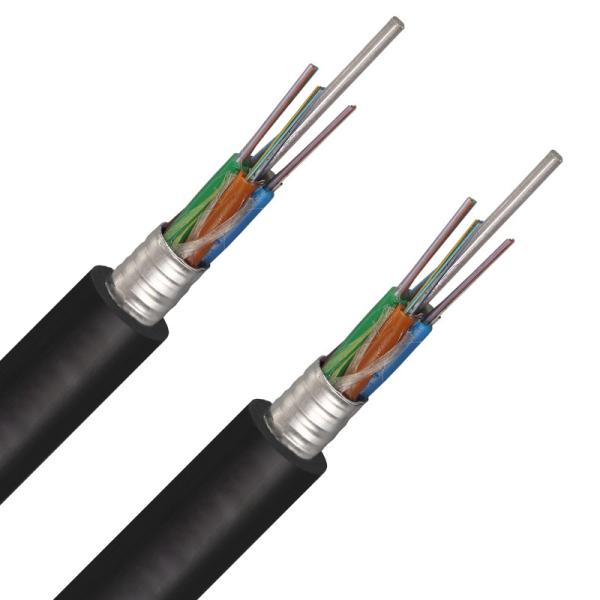

GYTA G652D Gel Filled Direct Buried Fiber Optic Cable Aluminum Tape Armored

Outdoor Fiber Optic Cable GYTA G652D Stranded Gel - Filled Loose Tube Aluminum Tape Armored Cable

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with
the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.

Product Construction:

1. Fiber:2-288 fiber Multi-loose tube gel-filled
2. Central Strength Member: Fiberglass reinforced Platic (FRP) or steel wire.
3. Armor:Aluminum Tape Armor
4. Outer Jacket:Black UV Polyethylene(PE)

Features:

Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Aluminum tape armor to protect cable from mechanical damage.
UV and waterproof design.

Application:
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit .

Technical Parameters:
Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
24	10.5	105.00	1500	600	1000	300	20D	10D	-40+60
36	10.5	105.00	1500	600	1000	300	20D	10D	-40+60
42	10.5	105.00	1500	600	1000	300	20D	10D	-40+60
48	12.0	150.00	1500	600	1000	300	20D	10D	-40+60
60	12.0	150.00	1500	600	1000	300	20D	10D	-40+60
72	12.0	150.00	1500	600	1000	300	20D	10D	-40+60

Cable Sheath Marking
XXXOFC 2021 GYTA XXCORE SM XXXXM
XXXOFC		manufacture's brand, (as client order)
2021		manufacture year
GYTA		cable type
XXXXM		marks for meters

Item		Parameter
Fiber-G652D	Attenuation Coefficient	1310nm dB/km ≤0.4
Fiber-G652D	Attenuation Coefficient	1550nm dB/km ≤0.3
Outer jacket	Material	MDPE
Outer jacket	Color	Black
Min. bending radius	Static	10 times cable diameter
Min. bending radius	Dynamic	20 times cable diameter
Repeating bending	Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance	Short term	1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush	Short term	1000N/100mm The addition attention≤0.1dB
Torsion	Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact	Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

Parameters of single mode fiber :
Items		Description
		G.652.D	G.655
Attenuation (dB/km)	1310nm	≤0.36	≤0.40
(After cable)	1550nm	≤0.22	≤0.25
Cable cut-off wavelength (mm)		≤1260	≤1450
Zero-dispersion wavelength (mm)		1300～1324	≤1520
Zero-dispersion slope([ps/(nm2·km)])		≤0.092	---
Dispersion slope(1550nm) ([ps/(nm2·km)])		---	≤0.0084
1310nm Mode field diameter (μm)		8.7~9.5	---
1550nm Mode field diameter (μm)		9.8~10.8	9.1~10.1
Core/Clad concentricity error (μm)		≤0.6	≤0.6
Cladding diameter ( μm)		125±0.7	125±0.7
Cladding non-circularity (%)		≤1.0	≤1.0
Primary Coating diameter ( μm)		235～250	235～250
(Before be colored)
Proof test level (kpsi)		≥100	≥100
Atttenuation with bending loss(dB)	@1550nm,25 mm radius, 100 turns	≤0.05	≤0.05
	@1550nm,16 mm radius, 1 turn	≤0.05	≤0.05

Attenuation and bandwidth of multi mode Optical fiber:
Fiber type	850/1300nm Attenuation(20℃) (After cable)		Overﬁlled Modal Bandwidth	Effective Modal Bandwidth	Application support distance on (at 850nm)
Fiber type	Typical value	Max value	850/1300nm	850nm	40GBASE-SR4 / 100GBASE-SR101	10GBASE-SR	1000BASE-SR
unit	dB/Km	dB/Km	MHz．Km	MHz．Km	m	m	m
50/125	3.0/1.0	3.3/1.2	≥500/500	---	---	---	---
62.5/125	3.0/1.0	3.3/1.2	≥200/500	---	---	---	---
OM2+	3.0/1.0	3.3/1.2	≥700/500	≥950	---	140	170
OM3	3.0/1.0	3.3/1.2	≥1500/500	≥2000	150	300	550
OM4	3.0/1.0	3.3/1.2	≥3500/500	≥4700	750	1000	1100

GYTA G652D Gel Filled Direct Buried Fiber Optic Cable Aluminum Tape Armored
