    Steel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/roll

    Ask Lasest Price
    Brand Name : SLR
    Model Number : GYTS+Power wire Hybrid Cable
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300000KM / Day
    Delivery Time : 2 Weeks after payment
    • Product Details
    • Company Profile

    Steel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/roll

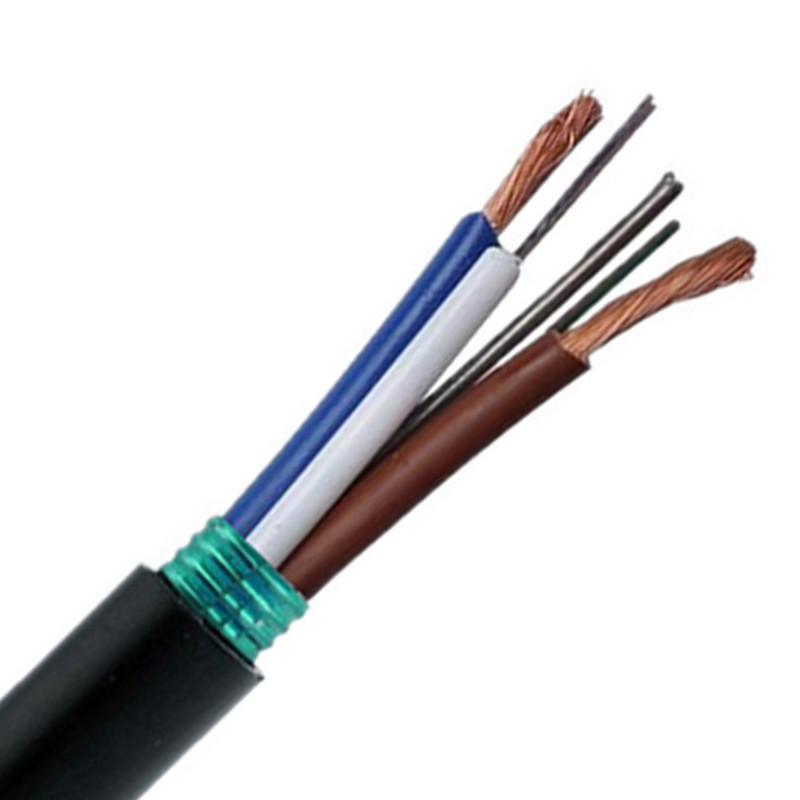

    Hybrid Optical And Electrical Fiber Optic Cable With Corrugated Steel Tape Armour​



    Hybrid Fiber optic cable with Power wires, that means in a single cable fiber cable and power wire in one bundle. It not only supply fiber optic data transmission, also same time can achive the goal for power supply. Hybrid cable, a single cable, therefore reducing the overall cost and lead time for installation.


    Cable Structure:

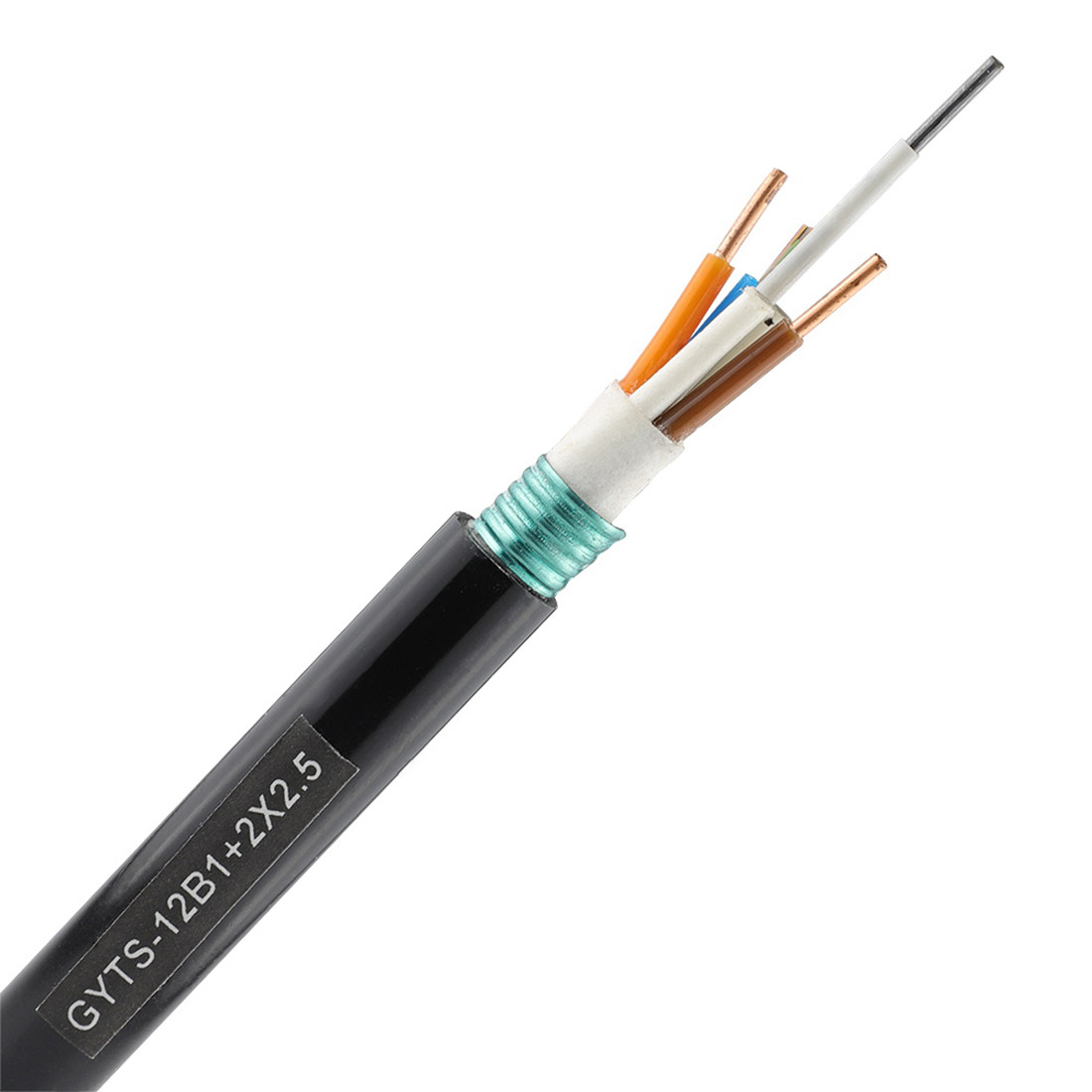

    The optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the center of cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with corrugated steel tape. Then, a PE sheath is extruded.


    Fiber core number and fiber type:
    The number of fiber cores can be selected from 2 to 144.
    There are the following optical fiber options:
    1, Single mode optical fiber G.652.D(or G.652.B) ,G.655;
    2, Multi mode optical fiber 50/125μm or 62.5/125μm,OM1 OM2 OM3 OM4 optional.
    You can choose to use hybrid fiber according to the actual situation, such as the hybrid use of G.652.D and G.655 fiber.


    Application:
    1: Security Camereas
    2: Optical Network Terminals
    3: Emergency Phones
    4: Wi-Fi Access Points
    5: Base stateion

    Steel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/roll


    Technical Specification of fiber optic/copper hybrid fiber cable
    Cable TypeFiber countsCable Diameter (mm)Weight (kg/km)Tensile Strength(N)Crush Resistance(N/100mm
    Long -TermShort -TermLong -TermShort -Term
    GDTS-2~24 2×1.52--2411.213260015003001000
    GDTS-2~24 2×2.52--2412.316460015003001000
    GDTS-2-24 2×4.02--2413.421260015003001000
    GDTS-2~24 2×5.02--2414.625860015003001000
    GDTS-2~24 2×6.02--2415.428760015003001000
    GDTS-2~24 2×8.02--2416.535060015003001000

    Notes:

    1.2*1.5/2*2.5/2*4.0/2*6.0 is the number of specification of the conductor.
    2.Different conductor specification can be make as required.
    3.Different Fiber specification can be make as required.


    Cable Sheath Marking
    XXXOFC 2021 GDTS XXCORE SM XXXXM
    XXXOFCmanufacture's brand, (as client order)
    2021manufacture year
    GDTScable type
    XXXXMmarks for meters

    ItemParameter
    Fiber-G652DAttenuation Coefficient1310nm dB/km ≤0.4
    1550nm dB/km ≤0.3
    Outer jacketMaterialMDPE
    ColorBlack
    Min. bending radiusStatic10 times cable diameter
    Dynamic20 times cable diameter
    Repeating bendingLoad:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
    Tensile performanceShort term1500N The addition attention≤0.1dB,fiber strain ≤0.15%
    CrushShort term1000N/100mm The addition attention≤0.1dB
    TorsionLoad:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
    ImpactImpact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.

    Steel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/roll


    Parameters of single mode fiber :
    ItemsDescription
    G.652.DG.655
    Attenuation (dB/km)1310nm≤0.36≤0.40
    (After cable)1550nm≤0.22≤0.25
    Cable cut-off wavelength (mm)≤1260≤1450
    Zero-dispersion wavelength (mm)1300~1324≤1520
    Zero-dispersion slope([ps/(nm2·km)])≤0.092---
    Dispersion slope(1550nm) ([ps/(nm2·km)])---≤0.0084
    1310nm Mode field diameter (μm)8.7~9.5---
    1550nm Mode field diameter (μm)9.8~10.89.1~10.1
    Core/Clad concentricity error (μm)≤0.6≤0.6
    Cladding diameter ( μm)125±0.7125±0.7
    Cladding non-circularity (%)≤1.0≤1.0
    Primary Coating diameter ( μm)235~250235~250
    (Before be colored)
    Proof test level (kpsi)≥100≥100
    Atttenuation with bending loss(dB)@1550nm,25 mm radius, 100 turns≤0.05≤0.05
    @1550nm,16 mm radius, 1 turn≤0.05≤0.05

    Attenuation and bandwidth of multi mode Optical fiber:
    Fiber type850/1300nm Attenuation(20℃) (After cable)Overfilled Modal BandwidthEffective Modal BandwidthApplication support distance on (at 850nm)
    Typical valueMax value850/1300nm850nm40GBASE-SR4 / 100GBASE-SR10110GBASE-SR1000BASE-SR
    unitdB/KmdB/KmMHz.KmMHz.Kmmmm
    50/1253.0/1.03.3/1.2≥500/500------------
    62.5/1253.0/1.03.3/1.2≥200/500------------
    OM2+3.0/1.03.3/1.2≥700/500≥950---140170
    OM33.0/1.03.3/1.2≥1500/500≥2000150300550
    OM43.0/1.03.3/1.2≥3500/500≥470075010001100

    Steel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/rollSteel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/roll
